3W 8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification

Name: 3W 8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification
Brand: YUESEN
Price: 0.2 USD

China 3W 8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification wholesale

Brand Name : YUESEN

Model Number : YDP3070-8

Certification : ISO2000, RoHS, REACH

Place of Origin : China, Jiangsu, Changzhou

MOQ : 10kpcs

Price : $0.2/pcs~$1/pcs

Payment Terms : T/T, Western Union

Supply Ability : 1-1.5million/month

Delivery Time : 2-4 weeks

Packaging Details : Carton

Product Name : Raw Audio Speakers

Size : 30*70mm

Power : 3W

Impedance : 8ohm

Sound Pressure Level : 80±3dB

Frequency Response : F0-8kHz

Contact Now

YDP3070-8 , commonly used accessories Raw Audio Speakers 3W,8ohm

We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.

General Specifications:

Dimensions	30*70mm
Rated Input Power	3W
Maximum Input Power	5W
Sound Pressure Level	80±3dB 1M/1W At 0.8,1.0, 1.5, 2.0KHz
Impedance	8Ω±15%

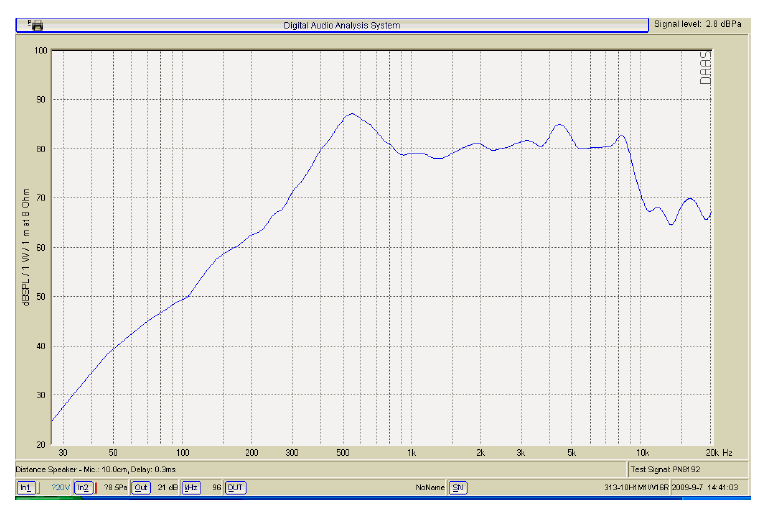

Frequency Response	F0~8kHz(-10dB)
Operation	Must be normal. Program source 3W
Noise	Must be normal. Sine wave 4.9V
Heat Test	Shall be normal after test. 55±2℃ 96 hours
Total Flux	Max Well
Humidity Test	Shall be normal after test. 40±2℃ 90~95%RH 16 hours
Load Test	Shall be normal after test. Input Power: 3W White Noise Duration: 100 hours
Polarization	When a positive DC current is applied to the terminal marked(+), diaphragm shall move forward
Net Weight	20.6±1.5g

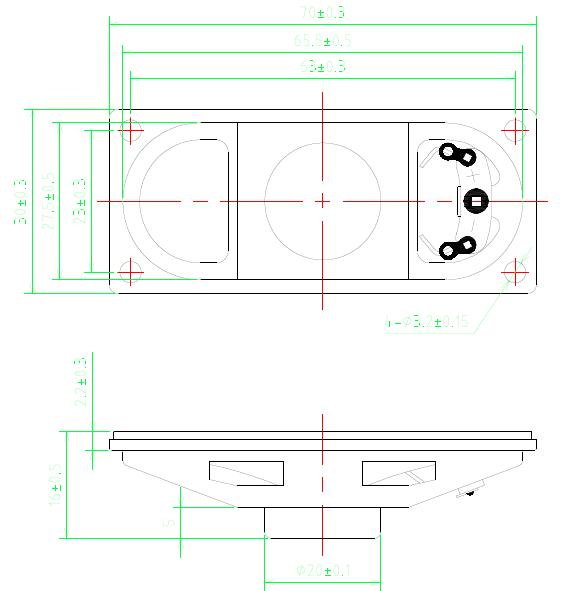

Drawing:

3W 8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification

Product Processing:

Product Tags:

raw subwoofer

car woofer speaker

3W 8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification Images
